Seamless Steel Pipe Size Chart: Dimensions, Wall Thickness & Weight

　　Shengtian Group provides a complete seamless steel pipe size chart with dimensions, weight, and wall thickness in mm. Find standard sizes for SCH 40 and SCH 80, including weight per meter.

　　Quick Reference for Common Seamless Pipe Sizes:

　　● 2" SCH 40 Pipe: OD 60.3mm, Wall Thickness 3.91mm, Weight 5.44 kg/m

　　● 4" SCH 40 Pipe: OD 114.3mm, Wall Thickness 6.02mm, Weight 16.07 kg/m

　　● 6" SCH 40 Pipe: OD 168.3mm, Wall Thickness 7.11mm, Weight 28.26 kg/m

　　● 2" SCH 80 Pipe: OD 60.3mm, Wall Thickness 5.54mm, Weight 7.48 kg/m

　　● 4" SCH 80 Pipe: OD 114.3mm, Wall Thickness 8.56mm, Weight 22.32 kg/m

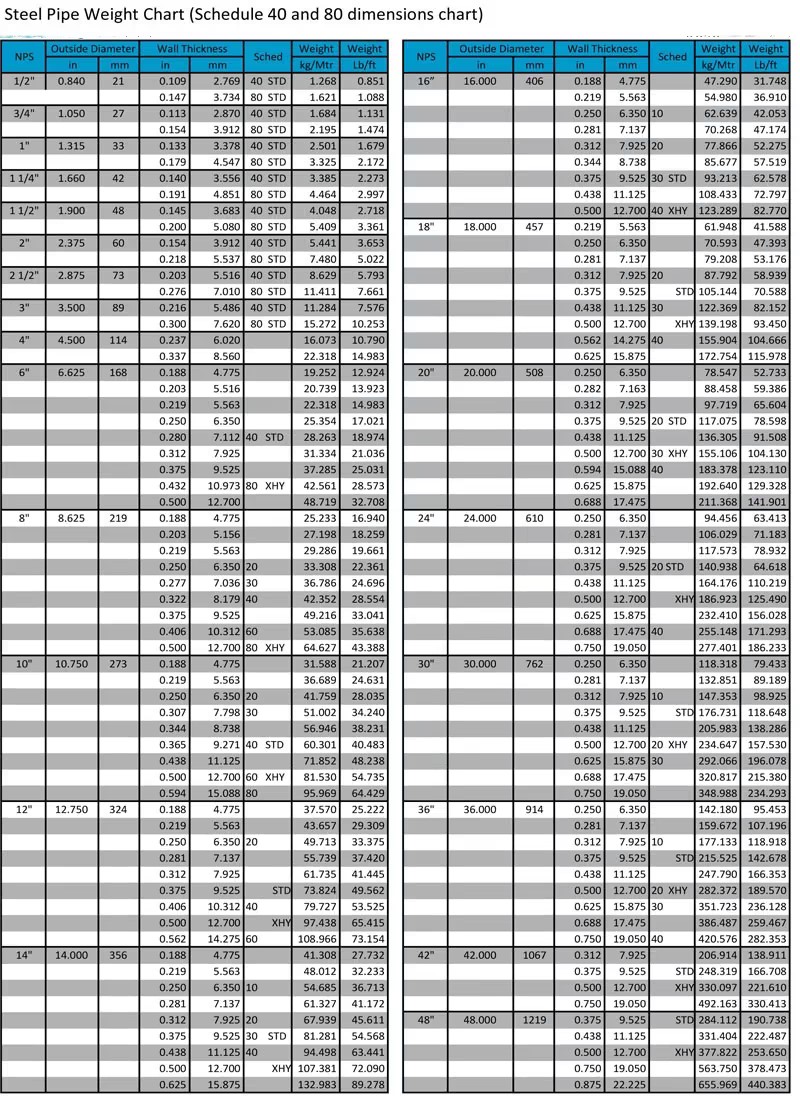

　　Seamless Steel Pipe Size Chart: SCH 40 & SCH 80 Dimensions and Weights

　　The following table provides dimensions, wall thickness, and weight per meter for seamless steel pipes in SCH 40 and SCH 80, two of the most commonly used schedules. Data is based on ASME/ANSI B36.10 standards for carbon steel pipes. All weights are theoretical and for reference only.


　　Note: The above data applies to carbon steel pipes (density ~7.85 g/cm³) and is based on ASME/ANSI B36.10 standards. For other materials (e.g., stainless steel), weight will vary slightly.

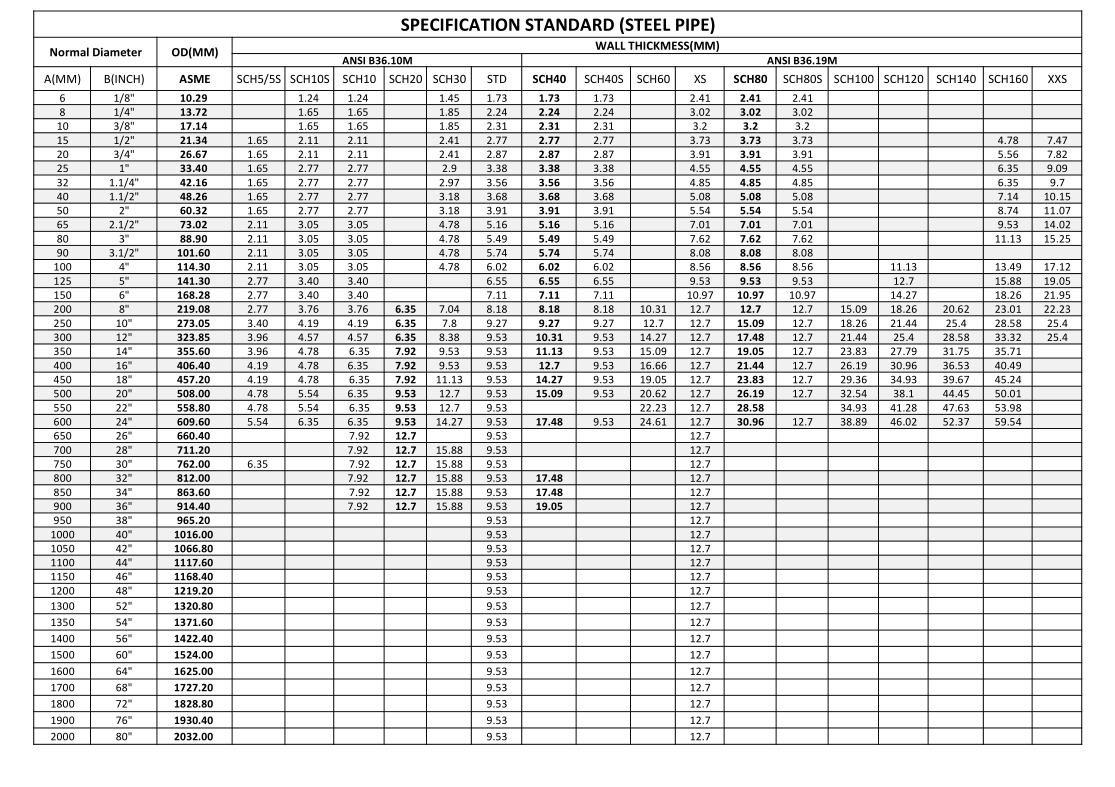

　　Complete Seamless Steel Pipe Size Chart (ASME/ANSI B36.10 & B36.19)

　　This comprehensive table provides wall thickness data for seamless steel pipes across a wide range of schedules, from SCH 5S to XXS, covering NPS 1/8" to 48". It is compiled according to ASME/ANSI B36.10 (carbon/alloy steel) and B36.19 (stainless steel) standards. All measurements are in millimeters (mm). Use this table for reference when you need wall thickness data for schedules other than SCH 40 and SCH 80.

　　Meaning of Seamless Steel Pipe:

　　HSCO Seamless Steel Pipe Size Range:

　　Outer Diameter: 1/2 inch - 36 inch (21.3mm-914.4mm)

　　Wall Thickness: 2.11mm-60mm ( SCH10, SCH20, SCH40, SCH80, STD, SCH120, SCH160, XXS)

　　Dimensional Parameters of Seamless Steel Pipes:

　　The dimensional parameters and ranges of seamless steel pipes are a system defined by the outer diameter (OD), wall thickness (WT), and the derived nominal diameter (DN) and wall thickness series (SCH).

　　1. Outer Diameter Range

　　a) Small Diameter Seamless Steel Pipe: The outer diameter is typically 6mm-89mm.

　　Process Characteristics: Cold rolling, cold drawing, or extrusion are often used, making it suitable for applications such as precision machinery components and oil drilling.

　　b) Medium Diameter Seamless Steel Pipe: The outer diameter is typically 89mm-219mm.

　　Process Characteristics: Hot rolling is the primary method, with some cold rolling or cold drawing also used. It is used for pipelines, chemical equipment, and other applications.

　　c) Large Diameter Seamless Steel Pipe: The outer diameter is typically 219mm or larger.

　　Process Characteristics: Hot rolling and hot expansion are the primary methods, with wall thicknesses up to 200mm. It is primarily used for boiler pipes and large structural components.

　　2. Wall Thickness Range

　　Conventional wall thicknesses are divided into three categories:

　　Standard wall thickness series: SCH 5S to SCH 160

　　Extra-heavy weight series: XS/XXS

　　SCH 40 (STD): Standard weight, most commonly used. SCH 40 is commonly referred to as standard weight (STD) for sizes up to NPS 10.

　　SCH 80 (XS): Extra-heavy weight, used for higher pressures.

　　SCH 160 (XXS): Extra-heavy weight, used for high-pressure pipes.

　　This is the most commonly used international method for indicating pressure ratings, designated as SCH. For the same outer diameter, the larger the number after the Sch, the thicker the wall thickness and the higher the pressure capacity. Common series: SCH 10, SCH 20, SCH 40, SCH 80, SCH 120, SCH 160.

　　Special wall thickness series:

　　Thin-wall seamless steel pipe: Wall thickness typically ranges from 0.25 mm to 6 mm.

　　Thick-wall seamless steel pipe: Wall thickness typically ranges from 6 mm or greater, with some reaching 50 mm or greater.

　　3. Length Range

　　Fixed Length: Three standard lengths are commonly available: 6 meters, 9 meters, and 12 meters.

　　Multiple Lengths: Specific multiple lengths are produced to order.

　　Special Lengths: Determined based on production conditions, typically ranging from 4 meters to 12 meters, or custom lengths can be made upon agreement.

　　4. Common Specifications

　　Small Diameter: Examples include Φ25×2.5, Φ32×3, and Φ57×3.5.

　　Medium Diameter: Examples include Φ89×4, Φ108×4.5, and Φ159×6.

　　Large Diameter: Examples include Φ219×8, Φ273×10, and Φ325×12.

　　5. Standards

　　International Standards: ASTM A106, ASTM A53, API 5L, etc.

　　Chinese Standards: GB/T 8162, GB/T 8163, GB/T 3087, GB/T 5310, etc.

　　Different Types of Seamless Steel Pipe Sizes:

　　1. Seamless Carbon Steel Pipe

　　API 5L GR.B, X42, X52, X56, X60, X65, X70 PSL1 & PSL2

　　Seamless carbon steel pipe size range: 2" - 26" (60.3mm-660mm)

　　Seamless carbon steel pipe schedules: STD, SCH100, SCH120, SCH160, XXS

　　Used in the oil and gas industry for natural gas, water, transportation, or offshore drilling platforms.

　　ASTM A106 GR.B, ASTM A53 GR.B

　　Seamless carbon steel pipe size range: 1/2" - 36" (21.3mm-914.4mm)

　　Seamless carbon steel pipe schedules: SCH10, SCH20, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH160, XXS

　　Used in a variety of applications from structural support to steam drum headers, with a temperature range up to 800°F (approximately 404°C).

　　2. Seamless Stainless Steel Pipe

　　Seamless Stainless Steel Tube Outer Diameter Range: 1/8" - 24" (10.29mm - 609.6mm)

　　Seamless Stainless Steel Tube Wall Thickness Range: Sch5S, Sch10S, Sch20S, Sch40S, Sch80S, Sch120, Sch160, XXS

　　Material Steel Grades: TP 304L/H, 316L/H, 309/S, 310/S, 317/L, 321/H, 347/H, 904L, 2205, 2507

　　Standards: ASTM A312, ASTM A213, ASTM A358, ASTM A813, ASTM A814

　　3. Seamless Boiler Tube

　　Seamless Boiler Tube Outer Diameter (OD) Range: 10mm to 510mm

　　Seamless Boiler Tube Wall Thickness (WT) Range: 1.5mm to 26mm

　　Common Standards: ASTM A106, ASTM 179, ASTM A192, ASTM A213, ASTM A333, ASTM A335

　　4. Seamless Mechanical Tube

　　Seamless Mechanical Tubing OD Range: 6mm-350mm

　　Seamless Mechanical Tubing Wall Thickness Range: 0.5mm-25mm

　　Length: High-precision cut-to-length, commonly 1-8 meters, or precision cut-to-length.

　　Process: High-precision, primarily cold drawing/cold rolling.

　　Used for manufacturing mechanical parts, emphasizing precision, performance, and processability.

　　Common Standards: ASTM A519, DIN 2391, GB/T 3639

　　5. Seamless Structural Tube

　　Seamless Structural Tubing OD Range: 35mm-1060mm

　　Seamless Structural Tubing Wall Thickness Range: 3mm-120mm

　　Length: Cut-to-length or multiple lengths, commonly 6 meters, 9 meters, and 12 meters.

　　Process: Standard precision, primarily hot rolling. As a component of architectural/engineering structures, it emphasizes overall strength and stability.

　　Common standards: ASTM A500, ASTM A501, GB/T 8162

　　Calculation of Theoretical Weight of Seamless Steel Pipe:

　　The standard calculation formula for the theoretical weight of seamless steel pipe is:

　　W=0.02466×S×(D-S) (unit: kg/m)

　　Wherein, D represents the nominal outer diameter of the steel pipe (mm), and S represents the nominal wall thickness (mm). The coefficient 0.02466 is derived from the density of steel (7.85g/cm³) and unit conversion, and is applicable to common materials such as carbon steel and alloy steel. ‌‌

　　Calculation example:

　　Take a seamless steel pipe with an outer diameter of 60mm and a wall thickness of 4mm as an example:

　　W = 0.02466 × 4 × (60 - 4) = 5.52kg/m. ‌‌

　　‌Notes:

　　‌Deviation between theoretical value and actual value: Due to the dimensional error allowed by the production process (such as wall thickness deviation), the theoretical weight is only used as an estimated reference. ‌‌‌‌

　　‌Adjustment of special materials‌: Materials with large density differences such as stainless steel need to adjust the coefficient value, and the calculation formula needs to be multiplied by the ratio of the material density to 7.85. ‌‌

　　How to Choose Seamless Pipe Dimensions?

　　1. Wall thickness selection (working pressure)

　　High pressure/high temperature environment (such as 10MPa): Select Sch80, Sch160 (thickened wall).

　　Low pressure fluid (0.6MPa): Select Sch40 (standard wall thickness).

　　2. Matching of outer diameter and diameter

　　Pipe diameter (DN) ≠ outer diameter, need to be converted according to the standard (especially the difference between American standard NPS and national standard DN).

　　Flange and valve interface must be consistent with the outer diameter of the steel pipe, otherwise the diameter needs to be reduced.

　　3. Temperature and material selection

　　Carbon steel performance changes significantly at different temperatures, and the material needs to be matched:

　　-20℃~350℃: 20# steel, low carbon steel, good low temperature toughness.

　　350℃~550℃: 15CrMoG, alloy steel, resistant to high temperature oxidation.

　　≤-20℃: 16MnDG, low temperature steel, anti-brittle cracking.

　　Key points:

　　Carbon steel will graphitize when used for a long time above 400℃, and alloy steel (such as 12Cr1MoVG) must be selected.

　　Low temperature environment (such as LNG) requires Charpy impact test to verify toughness.

　　4. Outer diameter tolerance

　　Hot rolled tube: ±1%~1.5%.

　　Cold drawn tube: ±0.1%~0.5% (high precision).

　　5. Special needs

　　Corrosion resistance: select galvanized seamless tube or stainless steel composite tube.

　　Lightweight: consider thin-walled cold drawn tube (wall thickness ≤2mm).

　　6. Economic comparison

　　The cost of galvanized carbon steel pipe is ＜50% of stainless steel pipe, but the life is shorter.

　　Chemical strong acid environment → directly select Hastelloy C276 for more reliability.

　　Common ASTM Standards for Seamless Pipes include the following:

　　ASTM A53/A53M: This is a standard specification for pipe, steel, black and hot-dipped, zinc-coated, welded and seamless, used for general purposes, including galvanized and ungalvanized steel pipes.

　　ASTM A106/A106M: This is a standard specification for seamless carbon steel pipe for high-temperature or pressure service, typically used for applications above 350°C.

　　ASTM A312/A312M: This is a standard specification for seamless and welded austenitic stainless steel pipes, suitable for heavily cold-worked austenitic stainless steel tubes.

　　ASTM A269: This is a standard specification for seamless and welded austenitic stainless steel tubes for general corrosion-resistant and low- or high-temperature service applications.

　　ASTM A500/A500M: This is a standard specification for cold-formed welded and seamless carbon steel round, square, rectangular, or special shape structural tubes, used for welded, riveted, or bolted structures of bridges and buildings.

　　ASTM A209: This is a standard specification for seamless carbon steel and alloy steel tubes for use in boiler and superheater applications, suitable for high-temperature and pressure services.

　　ASTM A213/A213M: This is a standard specification for seamless ferritic and austenitic alloy steel tubes for boiler, superheater, and heat exchanger applications.

　　ASTM A335/A335M: This is a standard specification for seamless ferritic and austenitic alloy steel tubes for high-temperature service.
       Seamless steel pipe (SMLS pipe) is a type of steel pipe with no seams along its entire length. It is a hollow tube manufactured directly from a single solid steel billet through a complete industrial forming process Email : pipe@stpipefitting.cn.
