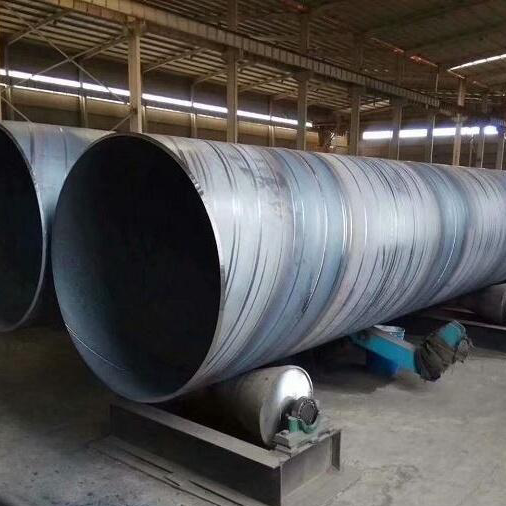

SY/T 5037—91 SSAW Steel Pipe
Mark & model :Diameter: 219mm~3620mm; WT: 5mm~26mm; Material:Q235 Q345 20#; Submerged Arc welding Pipeline is used for the transportation of common low-pressure fluid including water, coal gas, air and vapour.
Origin :China
Quality standard :International
H.S.Classification :Metal Articles Articles of Iron or Steel 7305 Tubes & pipes nesoi, external diameter > 406.4mm, of iron or steel
Standard:API 5LGr.B,API 5L PSL 1 PSL 2 X42,X46,X52,X60,X65,X70,
X80 ,ASTM A252 Gr.2,Gr.3,ASTM A53 Gr.BSY/T 5037-2000; SY/T5040-2000;
GB/T3091-2008: Q235B,Q345B,20#,16Mn;GB/T9711.1-1997; GB/T9711.2-1999: L245~L555;EN10217-1,EN10219-1,EN10224 L235,L275,L355;EN10025 etc.
Material:API 5L GR B,Q235,Q345,L245,L290,L360,16Mn,X42,X46,X52,X60,X65,
X70,X80,0Cr13,1Cr17,1Cr18Ni9,S235JR,S235JO,S235J2,S275JR,S355JR,S355JO,S355J2,S355K2; DIN 1629 ST37,ST42,ST52 etc.
Standard
Classfication |
Standard |
Main Products |
Steel Pipe for Fluid Service |
GB/T 14291 |
Welded pipe for mine fluid sevice |
GB/T 3091 |
Welded pipe for low pressure fluid service |
SY/T 5037 |
Spirally submerged arc welded steel pipe for pipelines for low pressure fluid service |
ASTM A53 |
Black and hot-hipped galvanized welded and seamless steel pipe |
BS EN10217-2 |
Welded steel tybes for pressure purposes - delivery technical conditions - part2: Electric welded non- alloy and alloy steel tubes with specified elevated temperature properties |
BS EN10217-5 |
Welded steel tybes for pressure purposes - delivery technical conditions - part5: submerged arc welded non-alloy and alloy steel tubes with specified elevated temperature properties |
Steel Pipe for Ordinary Structure |
GB/T 13793 |
Longitudinally electric resistance welded steel pipe |
SY/T 5040 |
Spirally submerged arc welded steel pipe piles |
ASTM A252 |
Welded and seamless steel pipe piles |
BS EN10219-1 |
Cold formed welded structural hollow sections of non-alloy and fine grain steels - part1: Technical delivert conditions |
BS EN10219-2 |
Cold formed welded structural hollow sections of non-alloy and fine grain steels - part2: tolerances dimmsions and sectional properties |
Line Pipe |
GB/T 9711.1 |
Steel pipe for pipeline transportation system of petroleum and natural gas industries(Class A steel pipe) |
GB/T 9711.2 |
Steel pipe for pipeline transportation system of petroleum and natural gas industries(Class B steel pipe) |
API 5L PSL1/2 |
Line pipe |
Casing |
API 5CT/ ISO 11960 PSL1 |
Steel pipe for use as casing or tubing for wells of petroleum and natural gas industries |
Chemical Analysis and Mechanical Properties of SSAW Steel Pipe
Standard |
Grade |
Chemical Composition(max)% |
Mechanical Properties(min) |
C |
Si |
Mn |
P |
S |
Tensile Strength(Mpa) |
Yield Strength(Mpa) |
API 5CT |
h40 |
- |
- |
- |
- |
0.030 |
417 |
417 |
J55 |
- |
- |
- |
- |
0.030 |
517 |
517 |
K55 |
- |
- |
- |
- |
0.300 |
655 |
655 |
API 5L PSL1 |
A |
0.22 |
- |
0.90 |
0.030 |
0.030 |
335 |
335 |
B |
0.26 |
- |
1.20 |
0.030 |
0.030 |
415 |
415 |
X42 |
0.26 |
- |
1.30 |
0.030 |
0.030 |
415 |
415 |
X46 |
0.26 |
- |
1.40 |
0.030 |
0.030 |
435 |
435 |
X52 |
0.26 |
- |
1.40 |
0.030 |
0.030 |
460 |
460 |
X56 |
0.26 |
- |
1.40 |
0.030 |
0.030 |
490 |
490 |
X60 |
0.26 |
- |
1.40 |
0.030 |
0.030 |
520 |
520 |
X65 |
0.26 |
- |
1.45 |
0.030 |
0.030 |
535 |
535 |
X70 |
0.26 |
- |
1.65 |
0.030 |
0.030 |
570 |
570 |
API 5L PSL2 |
B |
0.22 |
0.45 |
1.20 |
0.025 |
0.015 |
415 |
415 |
X42 |
0.22 |
0.45 |
1.30 |
0.025 |
0.015 |
415 |
415 |
X46 |
0.22 |
0.45 |
1.40 |
0.025 |
0.015 |
435 |
435 |
X52 |
0.22 |
0.45 |
1.40 |
0.025 |
0.015 |
460 |
460 |
X56 |
0.22 |
0.45 |
1.40 |
0.025 |
0.015 |
490 |
490 |
X60 |
0.12 |
0.45 |
1.60 |
0.025 |
0.015 |
520 |
520 |
X65 |
0.12 |
0.45 |
1.60 |
0.025 |
0.015 |
535 |
535 |
X70 |
0.12 |
0.45 |
1.70 |
0.025 |
0.015 |
570 |
570 |
X80 |
0.12 |
0.45 |
1.85 |
0.025 |
0.015 |
625 |
625 |
ASTM A53 |
A |
0.25 |
0.10 |
0.95 |
0.050 |
0.045 |
330 |
330 |
B |
0.30 |
0.10 |
1.20 |
0.050 |
0.045 |
415 |
415 |
ASTM A252 |
1 |
- |
- |
- |
0.050 |
- |
345 |
345 |
2 |
- |
- |
- |
0.050 |
- |
414 |
414 |
3 |
- |
- |
- |
0.050 |
- |
455 |
455 |
EN10217-1 |
P195TR1 |
0.13 |
0.35 |
0.70 |
0.025 |
0.020 |
320 |
320 |
P195TR2 |
0.13 |
0.35 |
0.70 |
0.025 |
0.020 |
320 |
320 |
P235TR1 |
0.16 |
0.35 |
1.20 |
0.025 |
0.020 |
360 |
360 |
P235TR2 |
0.16 |
0.35 |
1.20 |
0.025 |
0.020 |
360 |
360 |
P265TR1 |
0.20 |
0.40 |
1.40 |
0.025 |
0.020 |
410 |
410 |
P265TR2 |
0.20 |
0.40 |
1.40 |
0.025 |
0.020 |
410 |
410 |
EN10217-2 |
P195GH |
0.13 |
0.35 |
0.70 |
0.025 |
0.020 |
320 |
320 |
P235GH |
0.16 |
0.35 |
1.20 |
0.025 |
0.020 |
360 |
360 |
P265GH |
0.20 |
0.40 |
1.40 |
0.025 |
0.020 |
410 |
410 |
EN10217-5 |
P235GH |
0.16 |
0.35 |
1.20
|
SY/T 5037-91 SSAW steel pipe is also called spiral welded pipe. It is formed by rolling low-carbon structural steel or low-alloy structural steel into tube blanks according to a certain spiral angle (called forming angle), and then welding the tube seams. It can be produced from narrower strip steel. Large diameter steel pipe.
