ASTM A556, ASME SA 556 is a common standard specification for seamless cold-drawn carbon steel feedwater heater tubes. It covers minimum-wall-thickness, seamless cold-drawn carbon steel tubes including bending into the form of U-tubes. It’s used for making a water cooling wall of the power plant boiler, it can effectively eliminate the steam film on the inner wall of steel tube and improve the thermal efficiency of the furnace wall. There are three grades for this specification: Grade A2, B2, C2 and among them, B2 and C2 are commonly used.
The tubes we supply:
Specification: ASTM A556 B2
Outside Diameter: 20mm-31.8mm
Wall Thickness::1.1mm-35mm
Length: 3m-12m
Method: Cold Drawn
Delivery Condition: NBK, Bright, U bending.
ASTM A556 Chemistry Composition
|
Grade |
C |
Si |
Mn |
P |
S |
|
B2 |
≤0.27 |
≥0.10 |
0.29-0.93 |
≤0.035 |
≤0.035 |
ASTM A556 Physical Property
|
Grade |
Tensile Strength MPa |
Yield Strength MPa |
Elongation |
Hardness HRB |
|
A2 |
320 min |
410 min |
35 |
72 |
|
B2 |
410 min |
260 min |
35 |
79 min |
|
C2 |
480 min |
280 min |
35 |
89 min |
| Leg Length, ft [m] | Plus Tolerance in. [mm] |
| Up to 20 [6], incl | 1 ⁄ 8 [3.2] |
| Over 20 to 30 [6 to 9], incl | 5 ⁄ 32 [4.0] |
| Over 30 to 40 [9 to 12.2], incl | 3 ⁄ 1 6 [4.8] |
| Tube OD, in. [mm] | Tolerance, in. [mm] |
| 5 ⁄ 8[15.9] | 0.010 [0.25] |
| Over 5 ⁄ 8 to 1 1 ⁄ 4 [15.9 to 31.7], incl | 0.016 [0.4] |
The bent portion of the U-tube shall be substantially uniform in curvature and not exceed 6 1 ⁄ 16 in. [61.5 mm] ofthe normal centerline radius.
ASTM A556, ASME SA 556 steel pipe is mainly for a high-temperature heater system. World iron&steel offers ASTM A556 Grade B2 seamless steel tubes manufactured in cold drawn process in various sizes and specifications. If you are looking for this material, please contact us or get a quote! Not only do we have all kinds of sizes, but we also have all kinds of sizes that are hard to find.

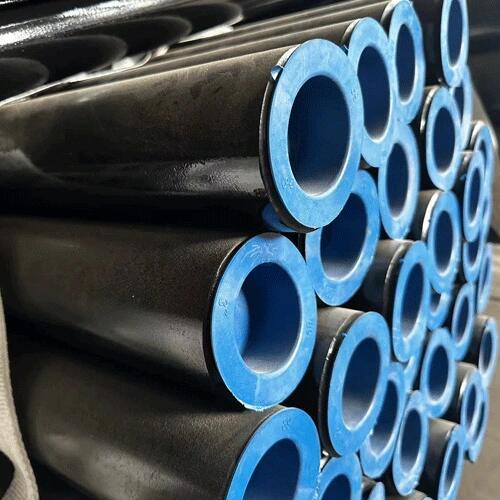

ASTM A556 Grade A2/B2 Seamless Carbon Steel Heater Pipe,ASME SA556 B2 Seamless Cold-Drawn Carbon Steel Feedwater Heater Tubes covers minimum-wall-thickness,seamless cold-drawn carbon steel tubes including bending into the form of U-tubes, for use in tubular. feedwater heaters.
