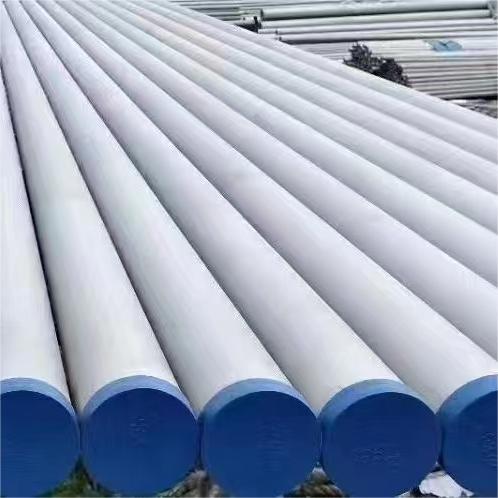

ASTM A269 304/304L Stainless Steel Seamless Pipes
ASTM A269 TP 304 / 304L Stainless Steel Seamless Pipes and Tubes Heat Resistance Good oxidation resistance in intermittent service to 8700C and in continuous service to 9250C. Continuous use of 304 in the 425-8600C range is not recommended if subsequent aqueous corrosion resistance is important.
ASTM A269 304/304L Stainless Steel Seamless Pipes
Specifications: ASTM A/ASME SA213/A249/A269/A312/A358 CL. I to V ASTM A789/A790
Sizes (Seamless): 1/2" NB - 24" NB
Sizes (ERW):1/2" NB - 24" NB
Sizes (EFW): 6" NB - 100" NB
Wall Thickness available:Schedule 5S - Schedule XXS (heavier on request)
Other Materials Testing:NACE MR0175, H2 SERVICE, OXYGEN SERVICE, CRYO SERVICE, etc.
Dimensions:All Pipes is manufactured and inspected/tested to the relevant standards including ASTM, ASME and API etc.
|
Weight %
|
C
|
Mn
|
P
|
S
|
Si
|
Cr
|
Ni
|
|
304L
|
.035
|
2.00
|
.045
|
.030
|
1.00
|
18.0-20.0
|
8.0-13.0
|
|
Grade
|
Tensile
|
||||
|
Ultimate/Min
|
Yield/Min
|
Elongation/Min
|
|||
|
KSI
|
MPA
|
KSI
|
MPA
|
%
|
|
|
304L
|
70
|
485
|
25
|
170
|
35
|
|
Grade
|
Density (kg/m3)
|
Elastic Modulus (GPa)
|
Mean Coefficient of Thermal Expansion (m/m/0C)
|
Thermal Conductivity (W/m.K)
|
Specific Heat 0-1000C (J/kg.K)
|
Electrical Resistivity (n.m)
|
|||
|---|---|---|---|---|---|---|---|---|---|
|
0-1000C
|
0-3150C
|
0-5380C
|
at 1000C
|
at 5000C
|
|||||
|
304/L/H
|
8000
|
193
|
17.2
|
17.8
|
18.4
|
16.2
|
21.5
|
500
|
720
|
|
STANDARD
|
SS 304L
|
|---|---|
|
UNS
|
S30403
|
|
WERKSTOFF NR.
|
1.4306/1.4307
|
|
EN
|
X2CrNi18-9 / X2CrNi19-11
|
|
BS
|
304S11
|
|
GOST
|
03Х18Н11
|
|
JIS
|
SUS 304L
|
|
AFNOR
|
Z3CN18‐10
|
| ASTM A269 TP304 Stainless Steel Tubes Specification | ASTM A-249, A-268, A-269, A-270, A-554, A-688, A-778, DIN 17455, DIN 17456, 17457, DIN 17458 [Class 1] & Its equivalent ASME, DIN & EN Standard. |
| ASTM A269 TP304 Stainless Steel Tubes Grades | 202, 304, 304L, 304H, 304LN, 309S, 310S, 316, 316L, 316H, 316Ti, 316LN, 317L, 321, 321H, 347, 347H, 904L, SMO 254, ALLOY 254, 6MO, 6MOLY, UNS S31254 ETC. |
| ASTM A269 TP304 Stainless Steel Tubes Type | Seamless / Welded / ERW / EFW / Cold Draw / Hot Finish / Cold Finish |
| ASTM A269 TP304 Stainless Steel Tubes Outer Diameter Size | Seamless - 6 MM OD TO 114.3 MM OD Welded / ERW- 10 MM TO 114.3 MM OD |
| ASTM A269 TP304 Stainless Steel Tubes Wall Thickness | 0.8 MM TO 4 MM Wall Thickness |
| ASTM A269 TP304 Stainless Steel Tubes Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size. |
| ASTM A269 TP304 Stainless Steel Tubes Ends | Plain Ends / Beveled Ends |
| ASTM A269 TP304 Stainless Steel Tubes Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered, Cold Draw |
| ASTM A269 TP304 Stainless Steel Tubes Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| ASTM A269 TP304 Stainless Steel Tubes Other Testing | Product Analysis, Transverse Tension Test, Flattening Test, Etching Test, Radiograph HIC Examination, Stabilizing Heat Treatment, Intergranular Corrosion Test, Weld Decay Test, Magnetic Particle Detection, Grain Size Test, NACE 0175, Dual Grade, PWHT (POST WELD HEAT TREATMENT), Flare Test, Bend Test, Hardness Test, Tensile Test etc |
| ASTM A269 TP304 Stainless Steel Tubes Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM And ASME |
| ASTM A269 TP304 Stainless Steel Tubes Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment / Annealed / Bright Annealed |
| ASTM A269 TP304 Stainless Steel Tubes Packaging | Loose / Bundle / Wooden Pallet / Wooden box-a / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| ASTM A269 TP304 Stainless Steel Tubes Shipment & Transportation | By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
| ASTM A269 TP304 Stainless Steel Tubes Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| NB SIZES | SCH 5 | SCH 10 | SCH 40 | SCH 80 | SCH 160 |
|---|---|---|---|---|---|
|
1/8″
|
√
|
√
|
√
|
√
|
√
|
|
1/4″
|
√
|
√
|
√
|
√
|
√
|
|
3/8″
|
√
|
√
|
√
|
√
|
√
|
|
1/2″
|
√
|
√
|
√
|
√
|
√
|
|
3/4″
|
√
|
√
|
√
|
√
|
√
|
|
1″
|
√
|
√
|
√
|
√
|
√
|
|
1 1/4″
|
√
|
√
|
√
|
√
|
√
|
|
1 1/2″
|
√
|
√
|
√
|
√
|
√
|
|
2″
|
√
|
√
|
√
|
√
|
√
|
|
2 1/2″
|
√
|
√
|
√
|
√
|
√
|
|
3″
|
√
|
√
|
√
|
√
|
√
|
|
4″
|
√
|
√
|
√
|
√
|
√
|
|
5″
|
√
|
√
|
√
|
√
|
√
|
|
6″
|
√
|
√
|
√
|
√
|
√
|
We supply ASTM A269 304/304L Stainless Steel Seamless Pipes Specifications ASME SA / ASTM A249, A268, A269, A270, A554, A688, A778, DIN 17455, DIN 17456, 17457, DIN 17458 [Grade 1] and Grade 202, 304, 304L, 304H , 304LN, 309s, 310s, 316, 316L, 316H, 316Ti, 316LN, 317L, 321, 321H, 347, 347H, 904L, 254 SMO, 6MO, 6MOLY, UNS S31254, exchanger tubes, boiler tubes, etc. Test methods required for a given application.
